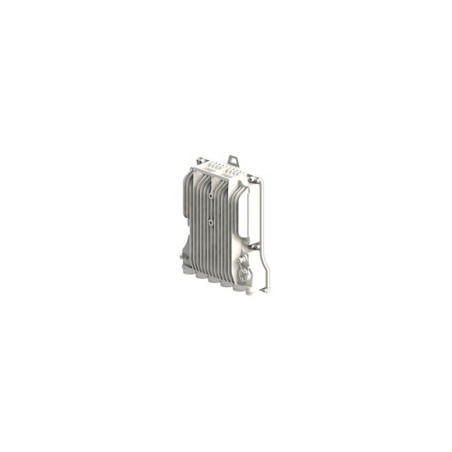

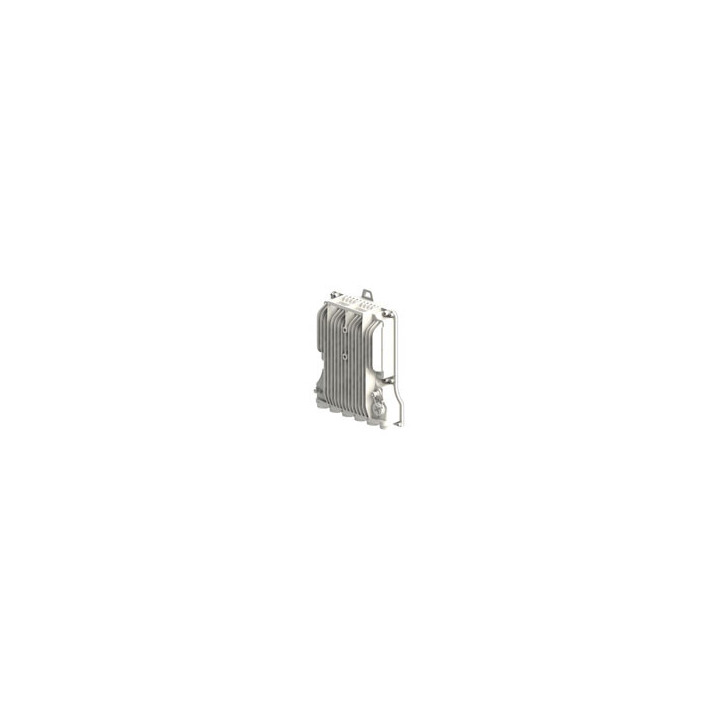

IP-50C Diplexer, 11GHz, TR500, Channels 1-6, TX High

IP-50C - Universal Multicore Microwave Radio for All Deployment Scenarios

The world's best all-outdoor microwave radio just became better. The IP-50C universal microwave radio is the evolution of the IP-20C, the world's best-selling wireless backhaul outdoor radio. The IP-50C brings new capabilities that allow you to base your entire network, from small cells to massive aggregation sites, on this single radio - reducing complexity, costs and time to revenue.

The IP-50C can be deployed as a standalone all-outdoor radio or combined with an indoor unit (the IP-50FX) as a scalable aggregation node and cell site router. Either way, you can leverage all the benefits

of Ceragon's cutting-edge multicore technology.

A unique configuration of an all-outdoor 4+0 node (utilizing layer-1 carrier aggregation) allows you to achieve up to 8Gbps by layer-1 carrier bonding without a need for an additional indoor unit. Moreover,

using the IP-50C, you may upgrade your existing all-outdoor installed base (whether Ceragon IP-20C 2+0 or any third-party all-outdoor) into 4+0 using layer-1 carrier bonding. This enables you to turn more sites

in your network into all-outdoor sites, thereby reducing time to market, lowering CAPEX and OPEX, and simplifying site acquisition tasks.

* Supported frequency bands: 6-42GHz

* Supported channel spacing: 3.5-224MHz

* ACM steps: 12, BPSK-4096QAM

* 4x4 LoS MIMO

* Advanced Frequency Reuse

* Advanced Space Diversity

* Remote 2nd carrier activation

INTERFACES

* 1/10GbE (electric)

* 10GbE (SFP+)

* 1/2.5GbE (SFP)

* 10GbE extension port for advanced features or traffic interface (SFP+)

CAPACITY

* Networking capacity: 16Gbps

* System capacity: 8Gbps (in 4+0 configuration)

* Layer-1 carrier bonding: Up to 4+0 in an all-outdoor configuration using a single cable
